The RH50D is an insulated telescoping ladder with a working height of 50 ft. (15.24 m), comprising three ladder sections for optimal effectiveness. Ideal for work requiring a longer reach (e.g., utility poles offset far from the road) since the side reach can take you all the way to 39 ft. (12 m). The lift ring located at the end of the second section is a standard accessory and can lift loads of 550 lbs (250 kg) in any position, regardless of the chosen vehicle.
This unit can be installed on different chassis as long as the GVWR (gross vehicle weight rating) is greater than 19, 000 lbs (8,620 kg) on a Ford F-550. And that’s not to mention the many other benefits and options available to ensure that RH aerial ladder equipment meets your precise needs.
Key in hand option is available. Please contact us to see what we can do for your preferred chassis and configuration.
With a system that is entirely independent of the vehicle, the ladder even works when the vehicle is stopped, which is incredibly convenient! A hybrid system can even be installed as an optional green solution, to cut down on time, carbon footprint, and cost.

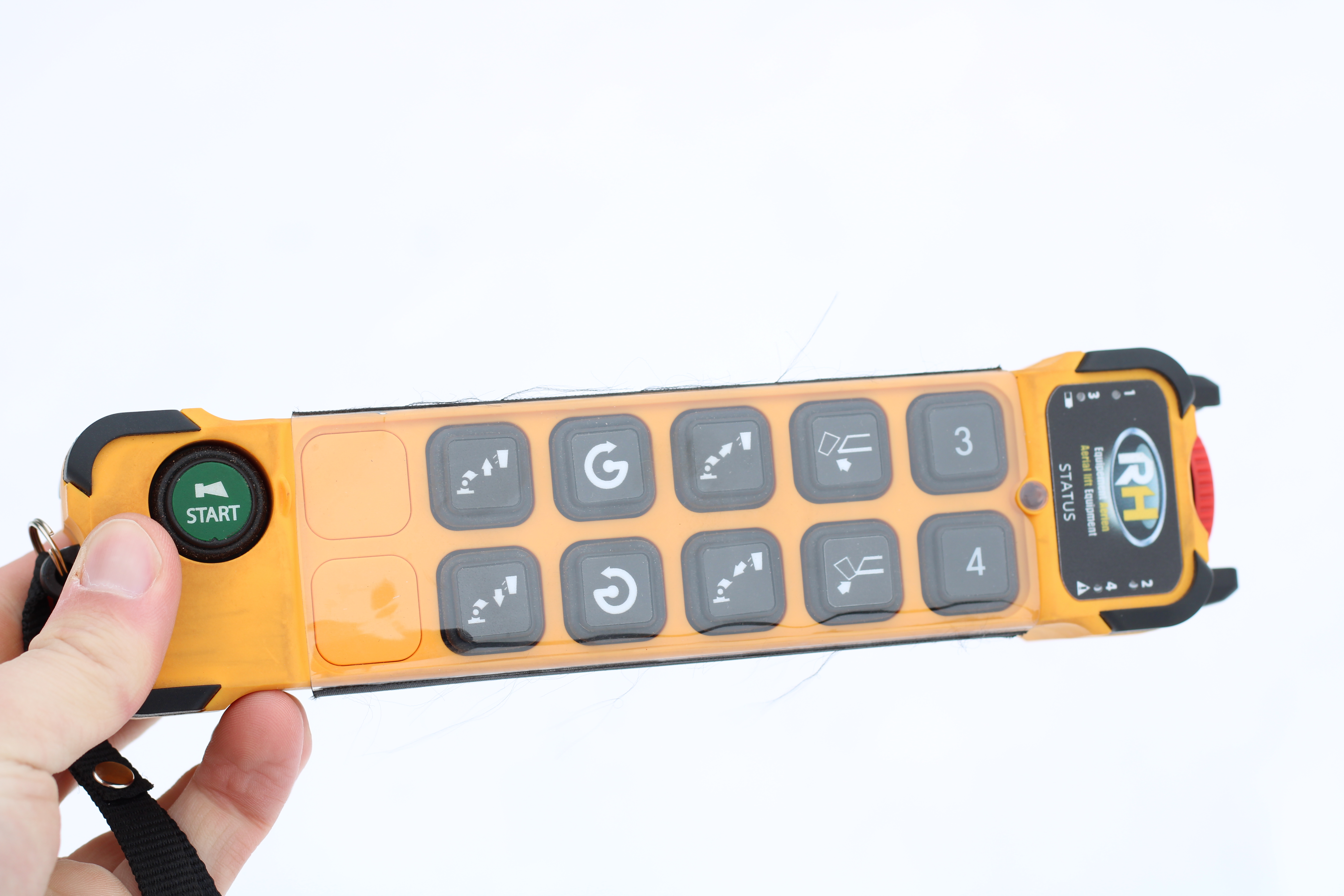

To give your operators greater freedom to work, our rugged wireless remote controls use advanced and incredible algorithms to ensure unparalleled safety and operation!
Completely independent from the vehicle this boom ladder operates off its own battery pack which means no emissions when an operation and no PTO needed.
Made of military-grade aluminum, the aerial lift's strength, lightness, and durability are incomparable! Equipped with a 46Kv Class C insulated boom ladder too.
Its factory-made design, which utilizes waterjet, laser cutting, and robotic welding technology to encourage high precision and eliminate errors, sets it apart from other machines.
* Informations shown can vary depending on truck and/or options ask a representative for more details
This type of aerial ladder must be installed on vehicles whose GVWR (gross vehicle weight rating) is greater than 9,500 lbs (4,309 kg). Outriggers are generally not required. However, given the variety of configurations possible, outrigger requirements must be confirmed by means of stability tests performed on your bucket truck.
The same applies to the bucket’s load-carrying capacity (in other words, the maximum weight authorized to be carried in the bucket). Specifically, this telescoping ladder is rated to carry 350 lbs (159 kg); however, its actual load-carrying capacity depends on the carrier vehicle.
We encourage you to contact Robert Hydraulique to obtain more information on the restrictions and factors to be taken into account when installing RH telescoping aerial ladders so that you can meet the highest standards in quality and safety.
*** Always ensure that you are complying with all local regulations when installing bucket-equipped aerial ladders. Robert Hydraulique is not responsible for installations performed outside of its production facilities
Are you interested in our incredible aerial ladder with ground access RH50D? We are available to help you choose a suitable vehicle model and quickly come up with a quote.
